The Supercharged, Game-changing Ebike

ORDER NOW
Placeholder 360
360° loading...
LZR500W
LZR PRO 900W

E-Dirt Jumper

OWN THE STREETS + CONQUER THE HILLS.
Shred the entire city and hit those backcountry lines with the two LZR performance tuned, power boosted, and hyper balanced mid-drive powertrains. The heavily engineered dirt jumper inspired core frame married with all-around urban ebike perfection means that you can confidently freeride and freestyle anytime, any place, all day without boundaries. Whether you prefer advanced adventures or merely turning your commute into the most fun part of your day, the LZR provides the highest performing control and stability in two incredibly hard-charging versatile ebike variants.

VOLTS:
0
Range:
0
-
0
Watt
Hours:
0

Level Up

The simplicity of the at-a-glance rider focused display increases response time to stomp that 360 or hold that 12 o'clock wheelie on demand. Effortlessly switch through modes and keep tabs on battery life in your all-in-one intuitive interface.

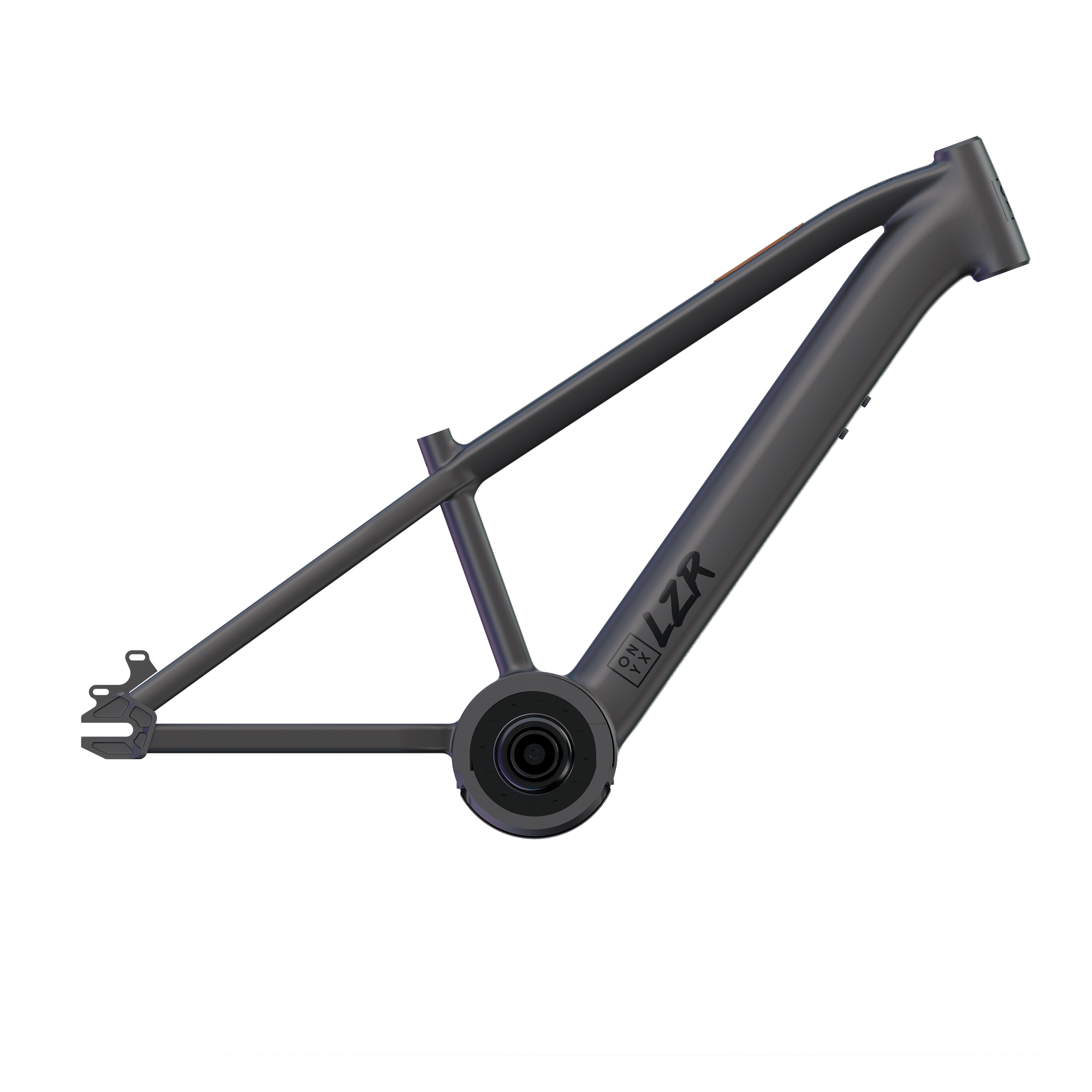

Core Geo

  • LZR 500w
  • LZR PRO 900w

The LZR 500W provides a lightweight dirt jump frame for all around freestyle and street riding. With 95 Nm of torque this electrified combo is fully capable of hitting the biggest jumps in the park and taming the most challenging urban obstacles while not even breaking a sweat.

The LZR PRO 900W frame takes performance to new heights with a precision balanced dirt jump geometry making leveled out big airs second nature. The pro is built tough, ready to tackle anything you throw its way. The 120 Nm in this frame and motor combination equals more stunts and even bigger jumps in less time.

Got Swat?

Ever wonder why most welds on ebikes look like complete trash? Well it's because they don't use ONYX engineered Smooth Weld Additive Technology aka SWAT. This is no white-labeled ebike hunk of junk. The LZR incorporates a precision tube matching design and our hyper smooth additive "not subtractive" weld tech built for the most demanding pro athletes in the world. We offer this tech on all variants of the LZR, so you can rest assured you can never blame your ebike again.

Detailed Specs

PERFORMANCE

Pedal Assist Modes
5 levels of assist
Riding Range
30-70 miles (Mode Dependent)
Max Power Output
500 W Nominal | Peak 615 W
Max Torque
95 Nm
Max Pedal Assist Speed
up to 28 mph
Battery Type
18650 Lithium-Ion Tube Pack
Battery Capacity
504 Wh
Battery Voltage
36 V
Battery Charge Time
7 hours at 2 Amps
Front Suspension
100mm Adjustable w/Lock out
Brakes
Tektro HD-M285 Hydraulic Disc Brakes

DRIVETRAIN

Motor
500 W ONYX Dark Matter Mid-Drive
Chainring
44T
Cassette
14T
Crank
170mm
Chain
KMC 710

CONSTRUCTION

Frame
6061 T6 Aluminum
Welds
SWAT (Smooth Weld Additive Technology)
Handlebars
Aluminum
Tires
26” Kenda Small Block Eight Dirt Jump Tire
Hubs
BMX Dirt Jump Hubs
Cable Routing
Internal
Curb Weight
45 lbs
Max Rider Weight
300 lbs
Dimensions (L|W|H)
70"|30"|39"


PERFORMANCE

Pedal Assist Modes
5 levels of assist
Riding Range
30-70 miles (Mode Dependent)
Max Power Output
750 W Nominal | 900 W Peak (Can peak 1050 W 30 secs)
Max Torque
120 Nm
Max Pedal Assist Speed
28 mph +
Battery Type
18650 Lithium-Ion Tube Pack
Battery Capacity
504 Wh
Battery Voltage
36 V
Battery Charge Time
7 hours at 2 Amps
Front Suspension
100mm Adjustable w/Lock out
Brakes
Tektro HD-M285 Hydraulic Disc Brakes

DRIVETRAIN

Motor
750W Bafang M600 Mid-Drive
Chainring
44T
Cassette
14T
Crank
170mm
Chain
KMC 710

CONSTRUCTION

Frame
6061 T6 Aluminum
Welds
SWAT (Smooth Weld Additive Technology)
Handlebars
Aluminum
Tires
26” Kenda Small Block Eight Dirt Jump Tire
Hubs
BMX Dirt Jump Hubs
Cable Routing
Internal
Curb Weight
47 lbs
Max Rider Weight
300 lbs
Dimensions (L|W|H)
70"|30"|39"


As Seen On

Run Play Back
Electrek
Trend Hunter
Review Geek
News Atlas
Autoevolution
Inside EVs
Ebike News
Clean Technica
Tech Times

YOUR BUILD & PRICE

MODEL
LZR500W
Sage Pearl
SAGE PEARL
Sage Pearl
COAL PEARL
LZR PRO900W
Sage Pearl
MYST PEARL
$1999.00MSRP


Shipping Now!
